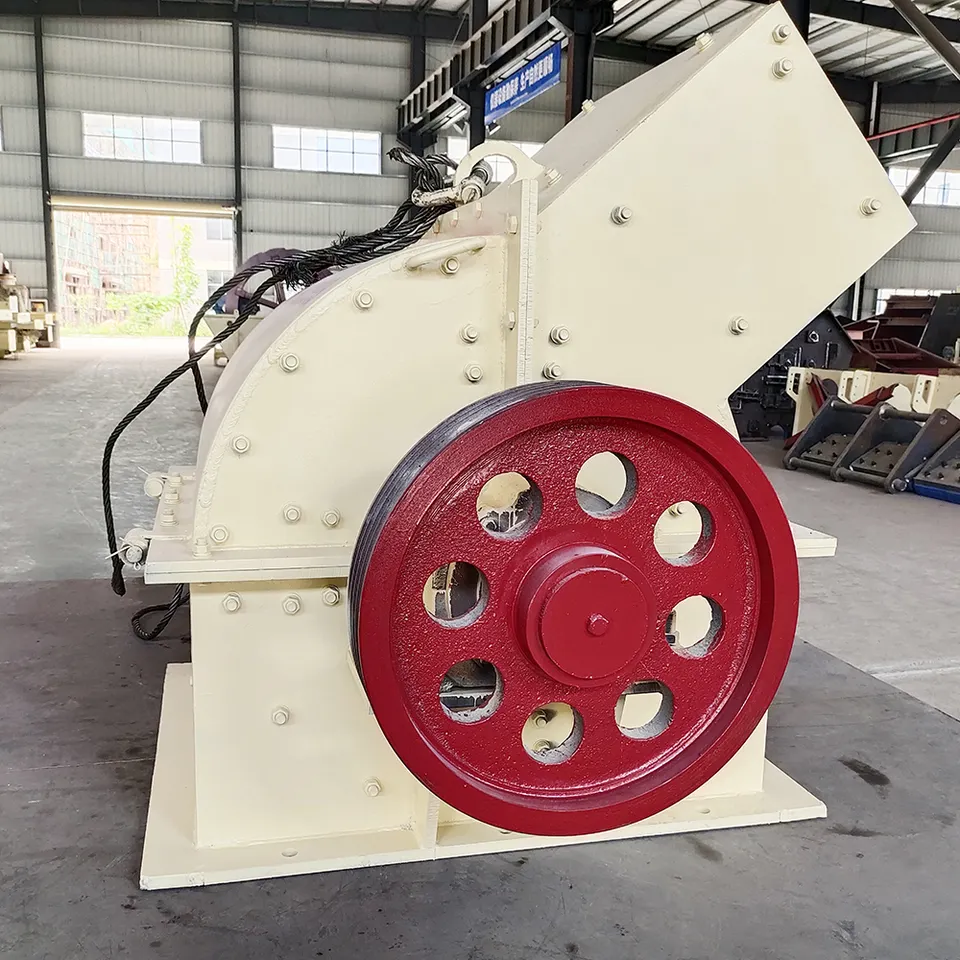

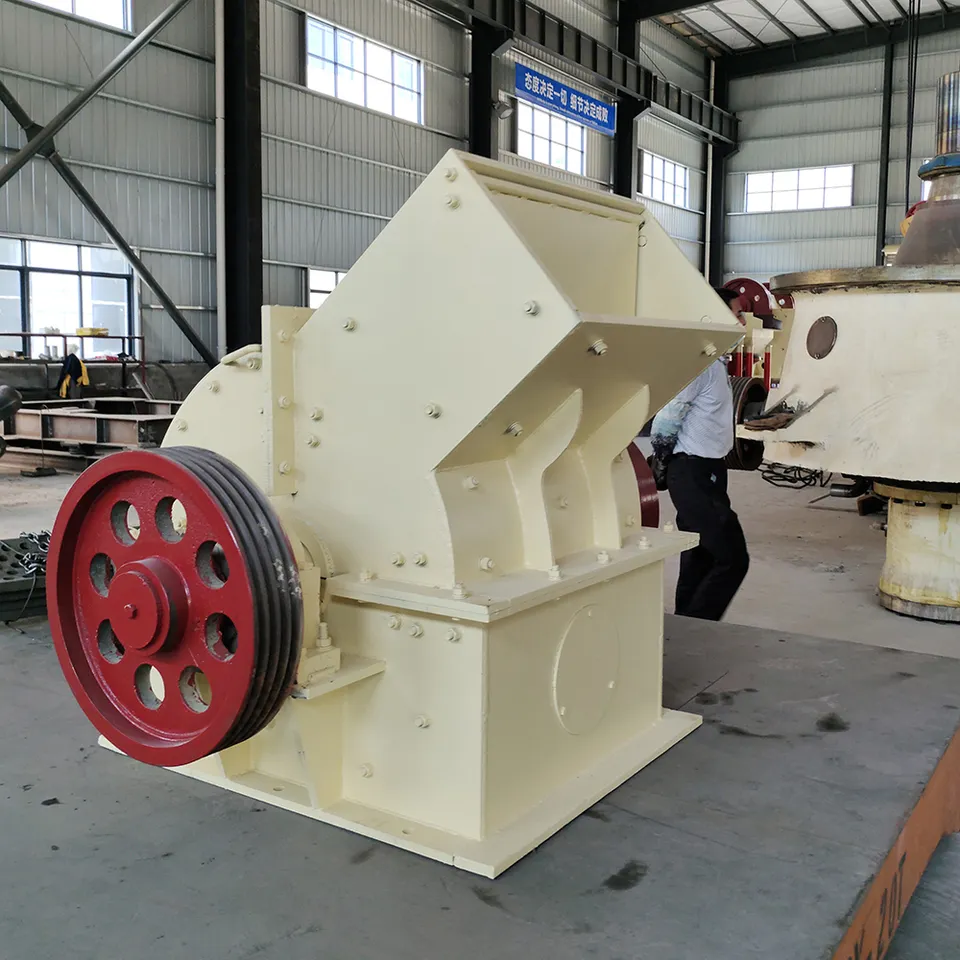

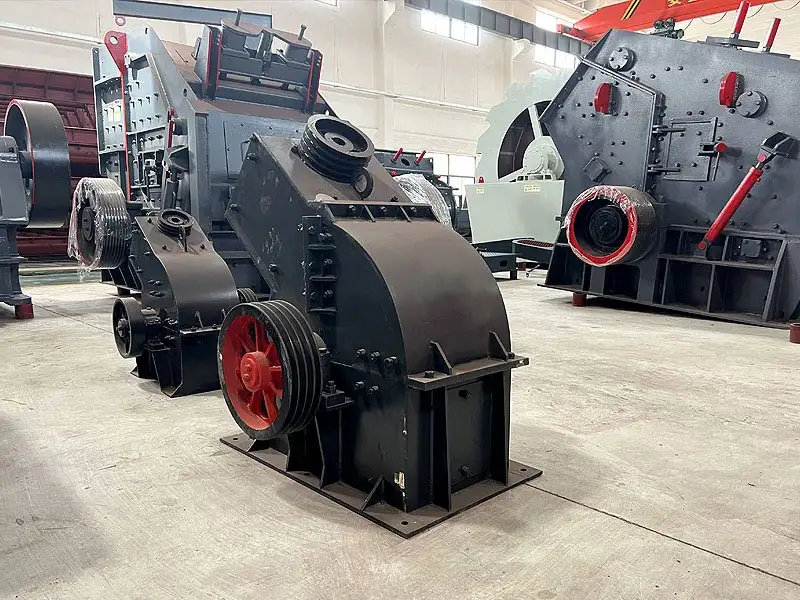

Hammer Crusher








      Process Material: Cement, coal, white subdivision, gypsum, alum, brick, tile, limestone, and other soft-medium hardness materials.





























      Hammer Crusher






      • Details
        •
















        Product Overview
        Hammer Crusher is a rock crusher used in various industries to reduce the material size, such as limestone, coal, slags, gypsum, glass. It uses of high-speed rotary hammer to impact the ore, the finished product size is adjustable by controlling the grate openings, rotor speed, hammer capacity, etc. Hammer mill, same as hammer crusher, hammer breaker, can crush the 600-1800 mm materials to below 25 or 25 mm. Sometimes, the hammer mill crusher is named by the application fields, such as coal crusher, coke crusher, limestone hammer crusher, brick crusher, cement hammer crusher, etc.

        Product Detail

        Structure&Working Principle
        Hammer Crusher Structure
        The main parts of a hammer crusher are the crushing chamber, rotor shaft, frame, impact hammer, grate bars, motor, flywheel, grate, pallets and lining, dust seal, and overload protection device.
        Hammer Crusher Working Principle
        Material is fed into the hammer crusher, which is subject to rotation, high-speed impact, and collision. Qualified crushed ore is discharged through the grate, the larger size materials continue to be crushed and shattered until they reach the required size.






        Specification

        ModelFeeding Size (mm)Discharge Particle Size(mm)Capacity (t/h)Power (kw)
        PCS300*200<60<101-27.5
        PCS400*300<80<101-37.5
        PC400×300<100<153-1011
        PC600×400<150<1510-2022
        PC800×600<200<2520-5055
        PC1000*800<350<3550-7075-90
        PC1000×1000<350<3570-9090-110
        PC1200*1200<350<3580-110132-160























































































































                Jiangxi Mingxin Metallurgy Equipment Co., Ltd
